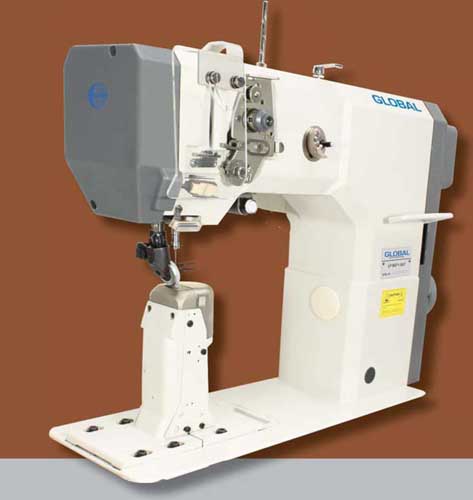

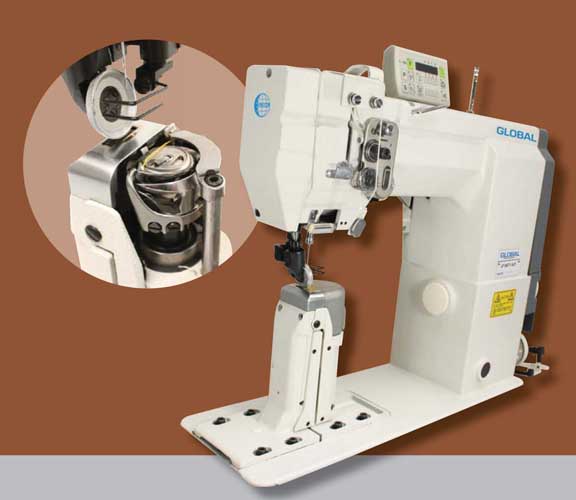

LP 2971 LH-AUT - Single needle lockstitch post bed machine with wheel feed, needle feed, driven roller presser and large hook. The machine is equipped with automatic thread trimmer, automatic back tacking, and presser foot lift.

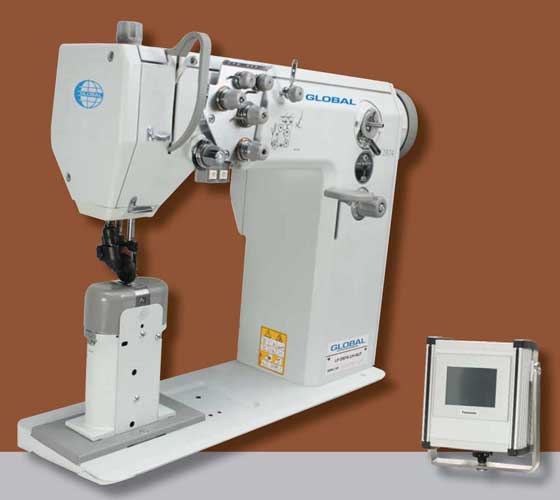

LP 2974 LH-AUT - Double needle lockstitch post bed machine with wheel feed, driven roller presser and large hooks. Standard needle gauge 2,0 mm. The machine is equipped with automatic thread trimmer, automatic back tacking, and presser foot lift. It’s easy to convert this machine into a needle feed machine.

SPECIAL LIGHT AND EDGE GUIDES FOR GLOBAL LP 2970 SERIES AND DÜRKOPP/ADLER 838/888 SERIES

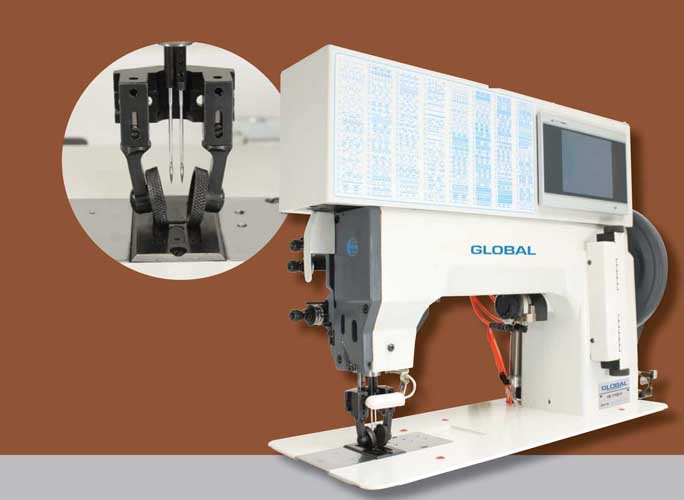

New programmable ornamental stitching double needle postbed machine with large hooks, automatic thread trimmer, automatic back tacking and presser foot lift, which can carry out functional and decorative seams on shoes, suitcases, and bags. This machine is delivered with 16, single- and double-needle decorative stitch patterns, to sew 32 different patterns, and further 16 freely programmable decorative stitch programs in addition (on special request). Needle distance 3,2 mm.

838-170522 - Single needle lockstitch postbed machine (right post) with driven roller presser and bottom feed, with electromagnetic thread trimmer, integrated 2-stitch length control, electro-pneumatic seam back tack and presser foot lift with large vertical two piece hook, safety clutch, presser foot height of 12 mm, stitch length up to 8 mm, maximum sewing speed 2.000 stitches/min.

838-270522 - Double needle lockstitch postbed machine with driven roller presser and bottom feed, with electromagnetic thread trimmer, integrated 2-stitch length, electro-pneumatic seam lift back tacking and presser foot, with large vertical two piece hooks, safety clutch, presser foot height of 12 mm, stitch length up to 8 mm, max. sewing speed 2.000 stitches/min.

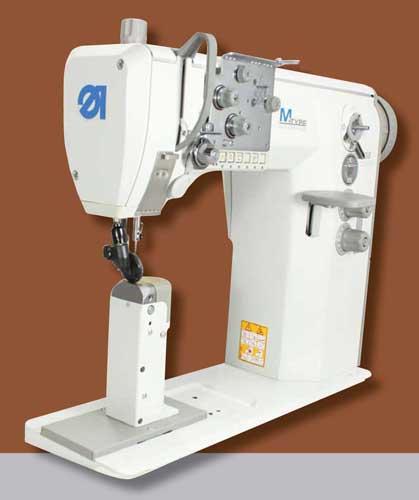

888-160020 - Single needle lockstitch post bed machine with wheel feed, needle feed and driven roller presser and a maximum stitch length 7 mm.

888-160122 - Same as 888-160020, but equipped with automatic thread trimmer, automatic backtacking, and presser foot lift.

888-160152 - Same as 888-160122, but equipped with small hook.

888-260020 - Double needle lockstitch post bed machine with wheel feed, needle feed and driven roller presser and a maximum stitch length 5 mm.

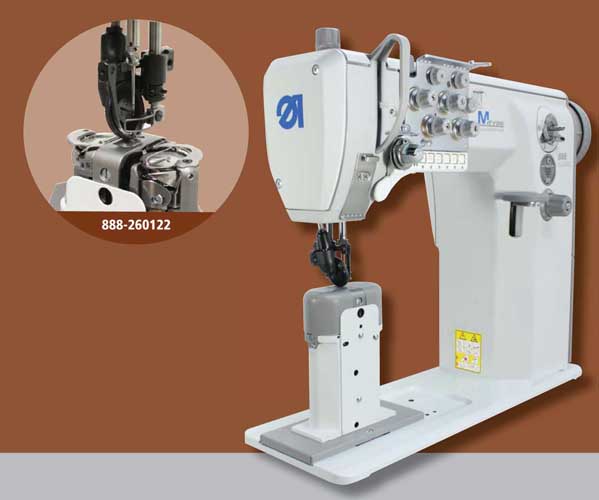

888-260122 - Same as 888-260020, but equipped with automatic thread trimmer, automatic backtacking, and presser foot lift.

888-356020 -Single needle lockstitch, post bed machine (left handed post) with large hook, lining trimmer and manual backtacking, with wheel feed, needle feed and top driven roller presser (also during backtacking), maximum stitch length 5 mm.

888-356122 - Same as 888-356020, but with automatic thread trimmer, automatic back tack and presser foot lift.

888-167122 - Single needle lockstitch, post bed machine (right handed post) with wheel feed, needle feed, top driven roller presser. Machine is equipped with electric thread trimmer, presser foot lift, automatic back tack, motor driven oblique knife and large hook.

888-460522 - Double needle lockstitch post bed machine with large hooks, for a professional performance of sewing operations on shoes and different leather articles.To avoid crossed seams at the corners, machine is equipped with electro-pneumatic mechanism for disconnection of left or right needle.

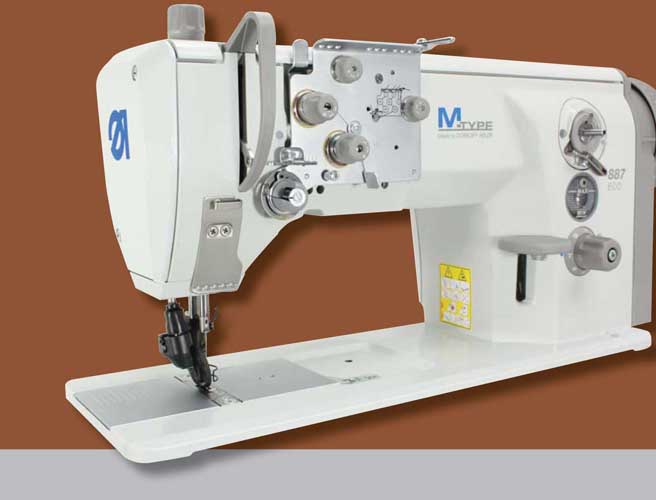

887-160020 - Single needle lockstitch fl at bed machine with wheel feed, needle feed and driven roller presser and a maximum stitch length of 7 mm.

887-160122 - Same as 887-160020, but equipped with automatic thread trimmer, automatic back tack, and presser foot lift.

887-160040 - Single needle lockstitch fl at bed machine with wheel feed, needle feed and driven roller presser and a maximum stitch length of 7 mm. Machine is equipped with extra large XXL hook with bobbin thread capacity increased by 70%, enabling to reduce the number of bobbin changes signifi cantly.

887-160142 - Same as 887-160040, but equipped with automatic thread trimmer, automatic back tack, and presser foot lift.

887-260020 - Double needle lockstitch fl at bed machine with wheel feed, needle feed and driven roller presser and a maximum stitch length of 5 mm. Standard needle gauge 2 mm.

887-260122 - Same as 887-260020, but equipped with automatic thread trimmer, automatic back tack, and presser foot lift.

LP 9933 R - Single needle economical postbed machine with reversible drop feed and roller presser foot for sewing medium materials. Stitch length 4 mm.

LP 9934 R - Double needle economical postbed machine with reversible drop feed and roller presser foot for sewing medium materials. Standard needle gauge 2,4 mm. Stitch length 4 mm.

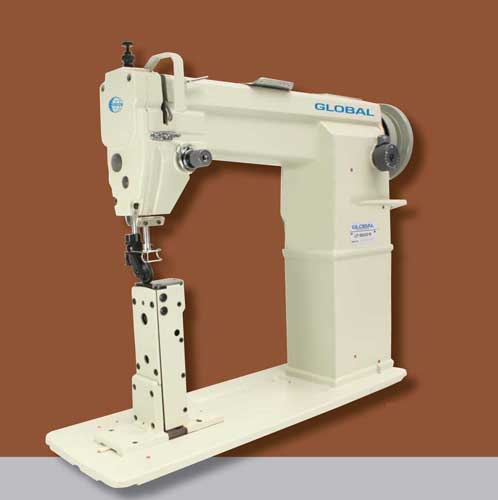

LP 9971 - Single needle postbed machine with reversible top driven roller, wheel and needle feed with standard hook.

LP 9971 C - Same as LP 9971, but with Chinese hook.

LP 9971 AUT - Same as LP 9971, but with automatic thread trimmer and pneumatic back tack

LP 9971 R - Same as LP 9971, but with manual back tack.

LP 9971 R-LH - Same as LP 9971 R, but with large hook.

LP 9974 - Double needle postbed machine with wheel feed and top driven roller presser ( no needle feed) and equipped with standard hooks. Standard needle gauge 2,4 mm.

LP 9974 C - Same as LP 9974, but with Chinese hook.

LP 9941 R - Single needle economical postbed machine with reversible drop feed, needle feed and roller presser foot for sewing medium materials. Stitch length 4 mm.

LP 9942 R - Double needle economical postbed machine with reversible drop feed, needle feed and roller Presser foot for sewing medium materials. Standard needle gauge 2,4 mm. Stitch length 4 mm.

LP 8871 - High speed, single needle postbed machine, driven by Ho Hsing built-in mini servo motor, with top driven roller, wheel- and needle feed and standard hook. Without manual back tack.

LP8871-R - Same as LP 8871, but with manual back tack. On roller presser and wheel feed.

LP 8871 AUT - Same as LP 8871, but with thread trimming device, automatic back tack and presser foot lift (all electric).

LP 8871-R AUT - Same as LP 8871 AUT, but with manual and electric back tack.

LP 9225 LH-L - Single needle postbed machine (post is 18 cm high) with needle feed, walking foot and large hook. Model LP 9225 LH-L has the hook on the left side of the needle.

LP 9225 LH-R - Single needle postbed machine (post is 18 cm high) with needle feed, walking foot and large hook. Model LP 9225 LH-R has the hook on the right side of the needle.

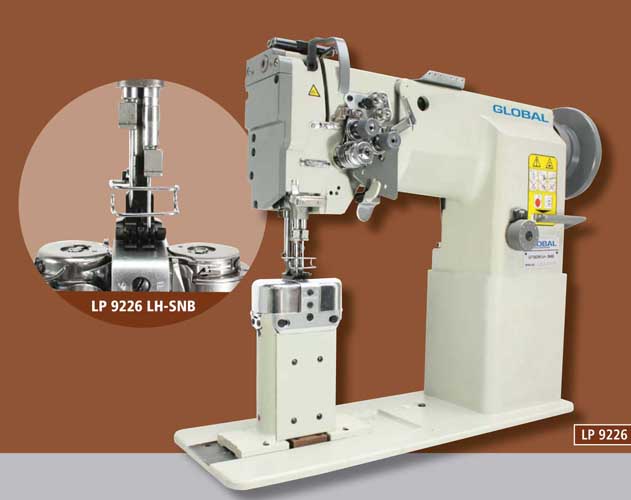

LP 9226 LH - Double needle postbed machine (post is 18 cm high) with needle feed, walking foot and Large hooks. Standard needle gauge 8 mm.

LP 9226 LH-SNB - Same as LP 9226 LH, but with manually disengageable needle bars.

LP 1768 AUT - Single needle walking foot postbed machine with thread trimmer, automatic back tack, presser foot lift, quick stroke adjustment for assembly and topstitching operations in home upholstery, car upholstery and leather.

LP 1768-2 AUT - Double needle walking foot postbed machine with thread trimmer, automatic back tack, presser foot lift, quick stroke adjustment and integrated second stitch length for assembly and topstitching operations in home upholstery, car upholstery and leather. Standard needle gauge 8 mm.

LP 1768-2 SNB AUT - Same as LP 1768-2 AUT, but with pneumatic disengageable needle bars.

LP 9915 L - Super high postbed machine (post is 45 cm high) with walking foot and standard hook. Model LP 9915 L has the hook on the left side of the needle. Machine is designed to sew boots and bags.

LP 9915 R - Same as above, but with the hook on the right side of the needle.

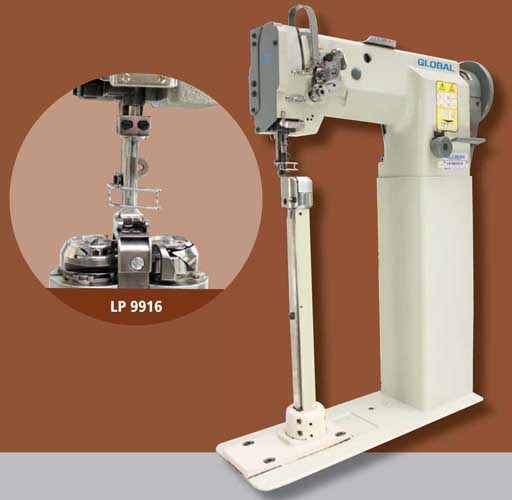

LP 9916 - Super high 2 needle postbed machine ( post is 45 cm high) with walking foot and standard hooks. Machine is fully lubricated and designed to sew boots and bags. Available needle distance 4 mm. Please note: this machine is no stock item, but can be ordered upon request.

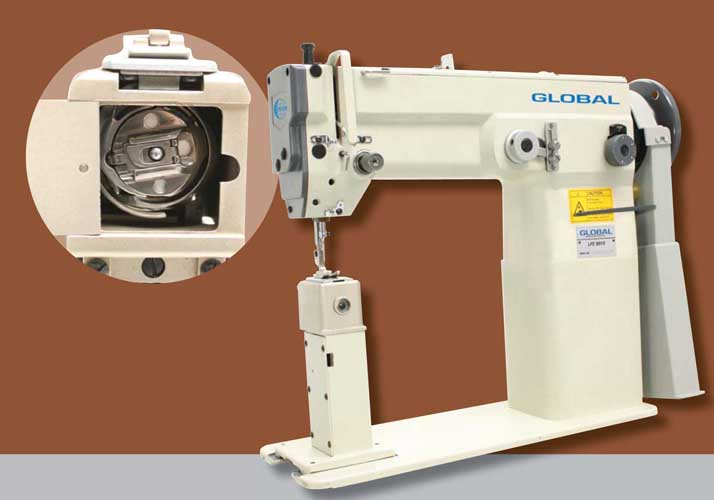

LPZ 9912 - Single needle, drop feed, postbed, zig-zag sewing machine with fully automatic lubrication and horizontal axis rotary hook for sewing light to medium materials. Stitch type: two point zig-zag (fi g. 1).

LPZ 9913 -Same as LPZ 9912, but with three point zig-zag stitch type (fi g. 2). This machine is no stock item, but can be ordered upon request.

LPZ 9914 - Same as LPZ 9912, but with four point zig-zag stitch type (fi g. 3). This machine is no stock item, but can be ordered upon request.

LPZ 9912 H - Single needle, upper- and lower feed, postbed, zig-zag sewing machine with fully automatic lubrication and horizontal axis rotary hook for sewing medium material, such as leather, canvas, etc. Stitch type: two point zig-zag (fi g. 1). This machine is no stock item, but can be ordered upon request.

OS 7700 P - Programmable ornamental stitching machine with 2 needles, which can carry out functional and ornamental stitching on shoewear, suitcases and bags as well as on heavy fabrics, such as jeans, tents and sofas. This machine is free programmable and is delivered standard with 100 patterns.

Ornamental stitch, cylinderbed machine with 2 needles, which can carry out functional and ornamental stitching on uppers, suitcases, bags etc. Supplied with interchangeable cams to sew 12 different patterns. Complete with table top, stand and Ho Hsing servomotor.

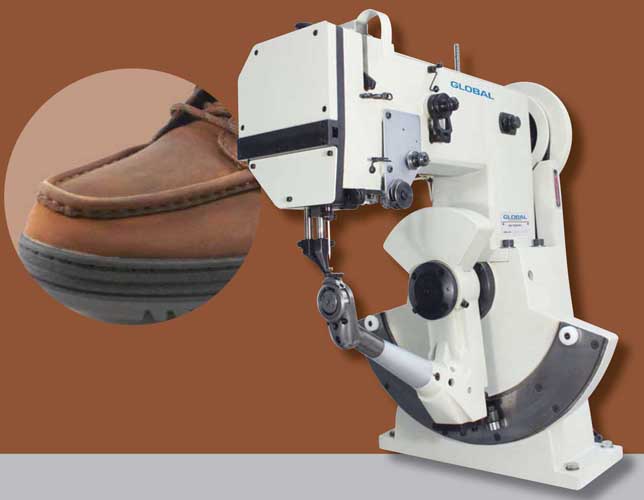

SM 7555 - Single needle lockstitch machine for sewing box soles onto shoes and ankle boots. This machine is equipped with fl oating horn support to make sewing easy around the toe and heel. Max. daily production 1000 pairs. Complete with table top, special stand and Ho Hsing servo motor.

SM 7555 LA - Same as above, but with extra long arm, suitable for boots etc.

SM 7555 NA - Same as above, but with “small” horn for fi ne work like children‘s shoes.

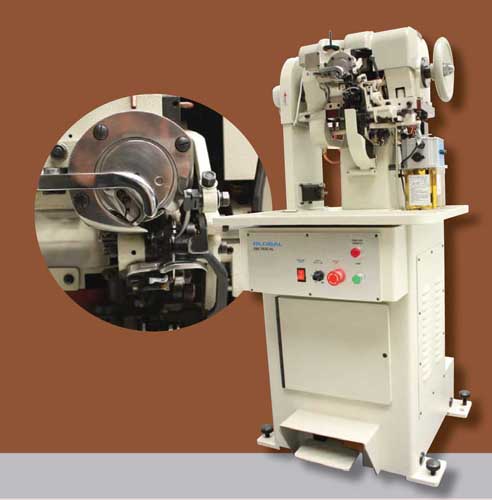

Single needle lockstitch sewing machine for side stitching of shoe soles. The machine is equipped with a small horn. This horn is used for side stitching of the shoes and box soles, also for stitch surmounting the tip of the upper. Specially designed for boots and children’s shoes. Complete with table top, special stand and Ho Hsing servomotor.

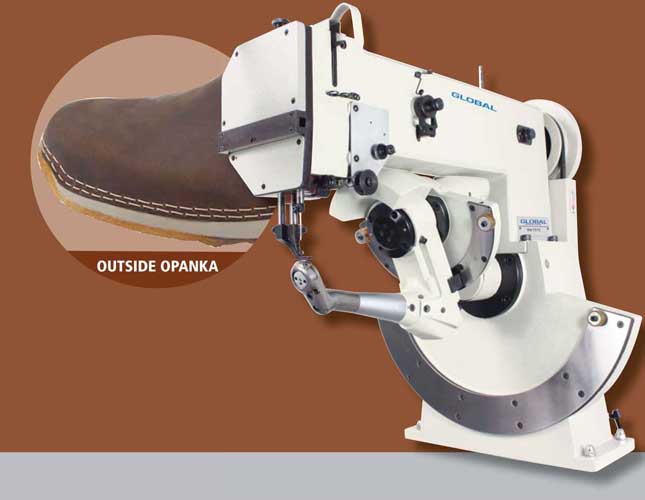

Single needle lockstitch, seated type, inseam sewing machine. The machine is equipped with a special horn designed for outside OPANKA stitching on children shoes. Complete with table top, special stand and Ho Hsing servo motor.

Single needle extra heavy duty lockstitch machine for sewing box soles onto workshoes and ankle boots. This machine is equipped with fl oating horn support to make sewing around the toe and heel easy. Max. daily production 1000 pairs. Complete with table top, special stand and Ho Hsing servo motor.

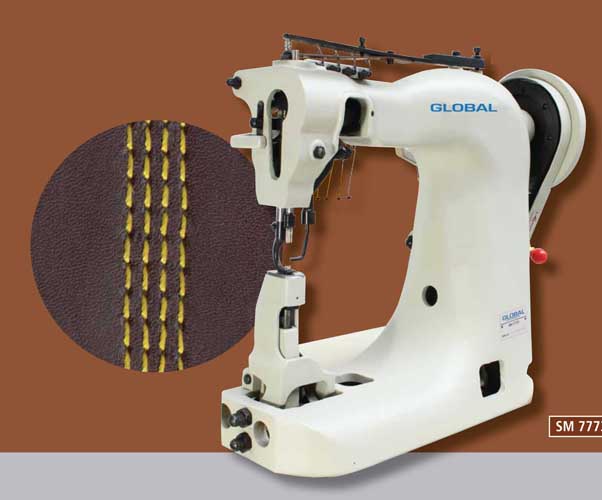

SM 7773 - Three needle chainstitch, low postbed sewing machine ideal for stitching work shoes, safety shoes, hunting shoes and boots, sandals and slippers. Machines are also suitable to sew luggage, bags, sporting goods (body protectors, punching bags, etc.) and a diversity of other items. Speeds of over 1600 stitches per minute are possible, depending upon the application. Complete with table top, special stand and Ho Hsing servo motor.

SM 7774 - Same as above, however a four needle chainstitch machine with a standard needle gauge of 7,2 mm

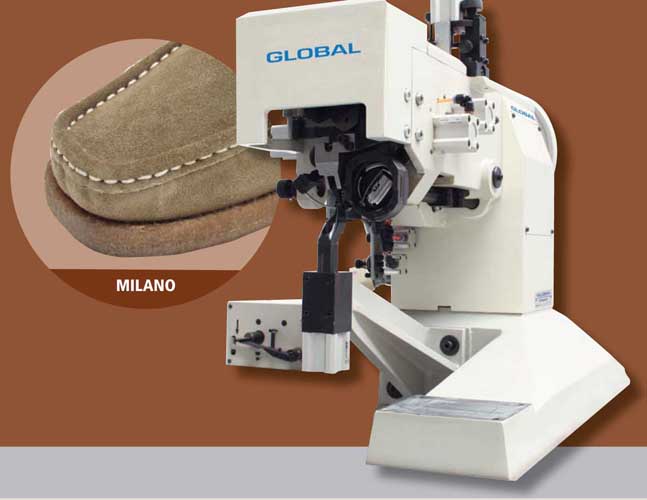

Single needle moccasin sewing machine with curved needle to reproduce the special shoemaker stitch. Different kits available for special fi nish. S, B and C kit come standard with the machine. Machine is delivered with table top, special stand and Ho Hsing servo motor.

Double needle feed off the arm sewing machine, specially designed for tubular closed and open moccasins. 12 different patterns can be set by interchangeable cams. The transport of the material is carried out by a left and right feed dog, which can be adjusted separately. According to the different settings of the feed dogs, ruffl ing effect can be realized. The amount of ruffl ing can be changed manually by knee control during working sewing operation. Complete with table top special stand and Ho Hsing servo motor.

High speed outsole stitching machine with automatic lubrication system. This machine is suitable to sew, upside seams for the shoe upper and the shoe sole, especially those for the thick sole and the working boots. Thanks to its Ho Hsing, HVP90-750 watt servo motor, we can adjust the speed to the skills of the operator and the type of footwear. Max. daily production 600-1000 pairs. The machine is equipped with a wax thread box suitable for waterproof shoe stitching.

Curved needle sewing machine for stitching upper directly on the bottom. This machine is specially made for sandals and slippers. This machine is able to carry out 2 kinds of stitches as drawing: "stitch out" (kit A) and "bordo" (kit B). You can realize one of these stitches according to fi xing the sewing guide unit “A” or “B” (Both supplied with the machine). Complete with table top, special stand and Ho Hsing servo motor.

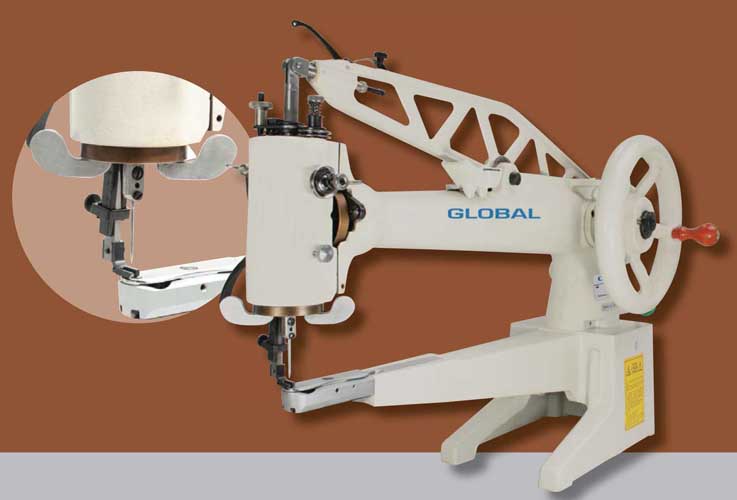

Shoe repair machine with universal feed in 360° sewing directions. The machine is equipped with a cylinder arm.

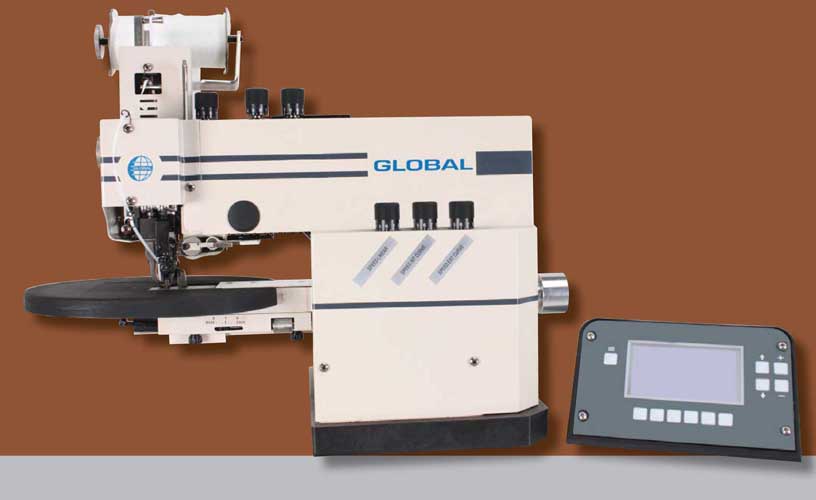

This machine is a good choice for production of shoes and other leather products. This machine is used to fold and at the same time cement the edge of leather goods, and other material of similar nature. The operator guides the piece against the guide and under the creaser foot. This foot holds the material and spreads the cement. Three speed rates are possible: for straight edges, internal and external curves.

SK-109 - This machine is designed for edge trimming of various injection moulded vamp, sole- and shoe lining. Suitable for trimming the front part and lining the shoes. Trimming of the rough edge of shoe sole, such as the rubber, plastic, PU shoe sole. It is widely used for riding boots and sandals.

SK-111 - This skiving machine is suitable to scrape all kinds of leather products for shoes, bags and belts. Max. skiving width up to 50 mm.
